Descrizione

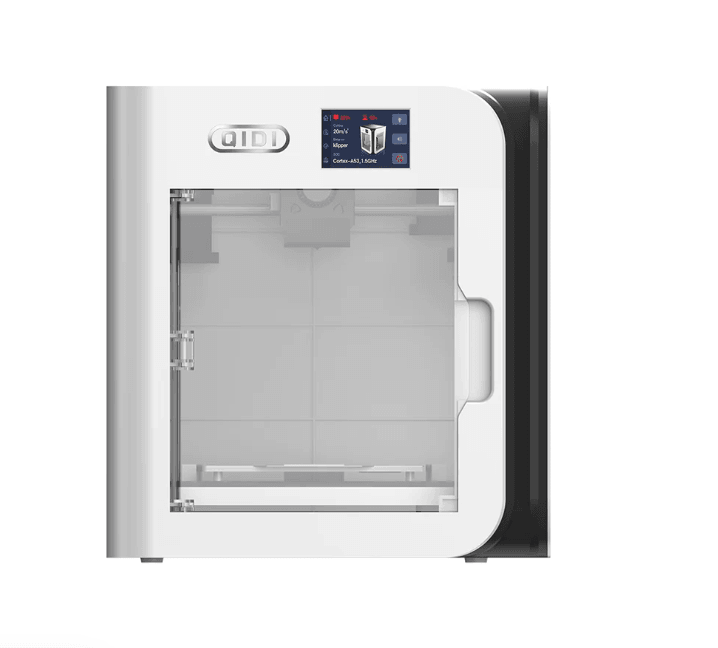

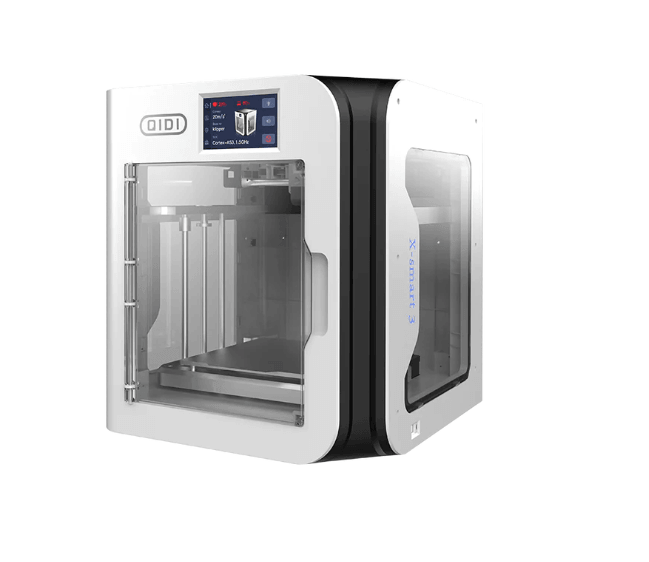

Qidi Tech X-Smart 3
Antinsky:Zhejiang QIDI Technology Co., Ltd is located in the city of Ruian,Zhejiang Province. They are a high-tech enterprise which is early to reseraching, developing, and marketing professional 3D printers in China. Their I-fast and X-CF pro are most popular industry 3d printer in the world.
CoreXY Structure
·Reduce the motion Inertia and improve the motion speed
·TMC2209 silent drive
·Less noise
The Upgraded Lightweight
Weight reduced to 600g from 1600g.
Enhanced strength, 6-12 times stronger than steel
Steadier,Stronger,Faster
Extrusion The 9.5:1 gear ratio
High quality and high speed printing
PLA,ABS,PETG materials
Automatic Levelling
New automatic intelligent levelling 16 points are taken to calculate the printing Compensation
Flexiable HF Board
Excellent adhesion,
No warping trouble,
Easy to remove the prints
Excellent User Experience
The highly acclaimed QIDI slicer software has both normal mode and expert mode, which is also easy for beginners to get started!
| Machine Name | |||
| X-Max3 | X-Plus3 | X-Smart3 | |
| Technology | FDM | ||
| Build Volume (W×D×H) |
325*325*325mm | 280*280*270mm | 180*180*170mm |
| Dimensions (W×D×H) |
553*553*601mm | 511*527*529mm | 370*362*397mm |
| Net weight (kg) |
24.5 | 19.5 | 10.5 |
| Printing Speed | ≤600mm/s | ≤500mm/s | |
| Extruder Flow: | 35mm³/s | 30mm³/s | |
| Extruder Temp | ≤350°C | ≤280°C | |
| Hotend (Included) | Copper alloy nozzle hotend For Common materials |
Brass Nozzle hotend |
|
| Hardened steel nozzle hotend For Abrasive materials |
|||
| Auxiliary Part Cooling Fan | ✔ | ✔ | ✖ |
| Chamber Temperature Control | 65°C Independent Chamber Heating | 65°C Independent Chamber Heating | ✖ |
| Chamber Circulation Fan With Activated carbon air filter |
✔ | ✖ | ✖ |
| Screen | 5.0 inch | 4.3 inch | |
| 800*480 touch screen | 480*272 touch screen | ||
| Seal print | Dryer Box + Desiccant | Optional | |
| Connection Options | Wi-Fi/USB Flash Drive/Ethernet Cable | Wi-Fi/USB Flash Drive | |
| Rated Power | 900W | 800W | 350W |
| Recommended Filament | PAHT-CF,PET-CF,PA12-CF | PLA | |
| Compatible filament | PLA, ABS, ASA, PETG, TPU, PET-CF, PA12-CF, PC, UltraPA, Nylon, etc. | PLA, ABS, ASA,PETG, TPU etc | |
| Structure | CoreXY | ||
| Z Axis： | Double Z axis | ||
| X axis | Hardened Wear-resistant Carbon Fiber Rod | ||
| Firmware: | Klipper | ||
| Printing Acceleration: | 20000mm/s² | ||
| Printing Accuracy: | ±0.1 mm | ||
| Filament diameter: | 1.75mm | ||
| Bed Leveling: | Automatic Leveling | ||
| Extruder transmission ratio | 9.5:1 | ||
| Hot end: | Ceramic Heating Core | ||
| Extruder: | High-flow Direct Drive Extruder | ||
| Nozzle diameter: | 0.4mm (0.2,0.6,0.8mm Optional) | ||
| Hot bed temperature: | ≤120℃ | ||
| Printing Plate: | Double-Sided Flexible Magnetic HF Plate | ||
| Filament Detection: | Yes | ||
| Resonance Compensation： | Yes | ||
| Pressure Advance： | Yes | ||
| Voltage: | 100-240VAC, 50/60Hz | ||
| Main Processer: | Cortex-A53,64-bit Preocessor | ||
| 1.5Ghz,8G-EMMC,1G DDR3 | |||
| Slicer: | QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc. | ||
| Operating System: | Windows, MacOS, Linux | ||
| Assembled | Assembled and First Print within 10 minutes | ||
