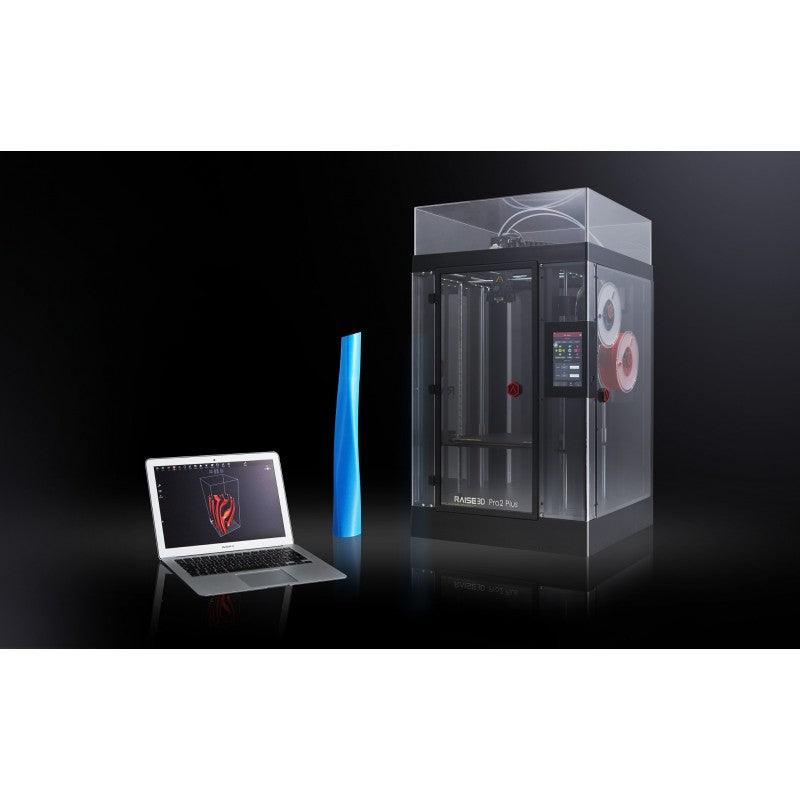

Raise3D Pro 2 Plus 3D printer
The Raise3D Pro 2 Plus printer works in FFF (Fused Filament Fabrication) technology, which involves printing fiber ductile thermoplastic material. The device was made of an industrial class of elements with a working area of 305 x 305 x 605 mm. The printer is perfect for small-lot production and prototyping.
Raise3D Pro 2 Plus - Double extruder
The Raise3D Pro 2 Plus printer includes a double extruder with an electronic lifting system that allows printing of multi-material objects. It enables the use of water-soluble PVA support material and increases the printing speed of 3D objects. The head speed is 30 - 150 mm / s, and the nozzle temperature during printing reaches a maximum of 300 ° C. Raise3D Pro 2 Plus has the ability to replace the nozzle. Available sizes: 0.2 / 0.4 / 0.6 / 0.8 mm.

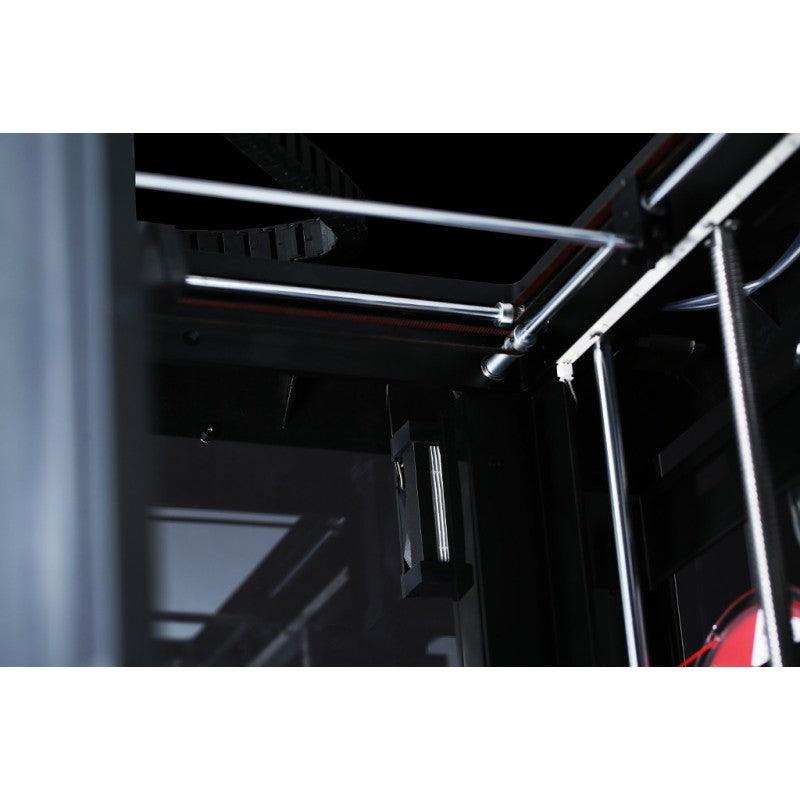

Raise3D Pro 2 Plus - Construction
The Raise3D Pro 2 Plus printer is a device with a double extruder and a large working area of 305 x 305 x 605 mm. This allows freedom to print multi-material 3D objects, making printed objects precise and high quality. Raise3D Pro 2 Plus has a built-in 7 inch touch screen and 2 USB 2.0 ports and 1 Ethernet port. The printer has a built-in 8 GB Flash memory.
Construction
- 24/7 Reliability
- Multiple fail safe systems
- Industrial grade components
High Resolutionć
- Interchangeable nozzles (0,2 / 0,4 / 0,6 / 0,8 mm)
- Precise positioning (0.78125 micron positioning resolution on X/Y axis)
- Unmatched layer resolution (0.01 mm layer thickness)
IdeaMaker software
Efficient and free software for preparing prints developed by Raise3D has an excellent interface and the ability to repair STL files. Raise3D Pro 2 Plus allows you to set the automatic raising or lowering of the layer height, which improves print quality and reduces printing time.
Remote user interface
A wireless connection to the 3D Pro 2 Plus printer is available using ideaMaker. It allows wireless transmission, control and monitoring of printouts.
Creating your own settings
IdeaMaker software allows creating settings for various printers, filaments and models. Saved settings can be used for later projects or shared with others.
Resume printout
The Raise3D Pro 2 Plus printer allows you to resume printing after power off. After restarting the device, the display will show the option to resume the previous printout.
Filament end sensor
The filament end sensor will notify the user of the material being terminated on the spool. The print will stop until the new material is replaced. The sensor guarantees reliability and continuity of printing.

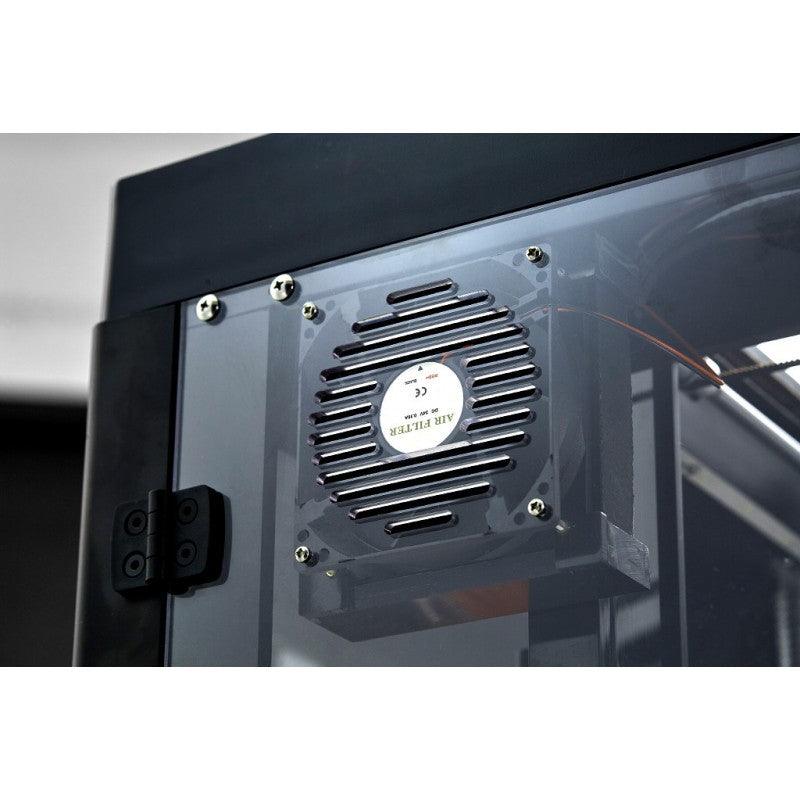

HEPA filters
The Raise3D Pro 2 Plus printer uses HEPA industrial filters that make the device can be used in an office environment. The filter retains over 91% of particles that escape in other printers during printing.
RaiseCloud - 3D printing management
RaiseCloud is an online platform for remote project management. It allows remote control, monitoring and reporting of the entire printing process. It allows you to manage any number of users, printers and tasks in one place. Users can remotely control, monitor and modify project data.
Next Generation Motion Controller
Best in class reliability / Precise voltage control / Silky smooth movement / Superior thermal performance
- 400 MHz ARM Cortex-M7 32bit RISC FPU
- Industrial grade components
- Stand-alone motor driver
- 256 micro-steps driver system
Intuitive service
Visual interface / Quick overview / Visual printing progress / Full adjustment control.
The Raise3D Pro 2 Plus printer has a convenient, built-in high-resolution touch screen that allows you to view printing progress and allows full control of settings. Files for the printer can be read via USB and sent over WiFi. The built-in camera allows you to monitor the progress of work, the software provides the ability to remotely control the printer.
7-inch touch screen
Integrated setting control
On-screen assistance
Visual model selection
The possibility of using many materials
Raise3D printers have been designed to ensure high material compatibility. To achieve the best performance and quality, select the appropriate print settings. For this purpose, the Raise3D Open Filament Program (OFP) was created. Filaments approved by Raise3D, which have been tested before, are sent to OFP. Print settings for such materials are included in IdeaMaker software to give users easier selection of the highest performance filaments.
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill
Raise3D Pro 2 - Raise3D Pro 2 Plus
Raise3D printers are perfect for industrial and professional applications. These printers work in FFF technology, have a large working area with the possibility of closing the working chamber and a built-in touch screen. The double extruder allows you to work with multi-material prints, and the resume printing system after turning off the power will ensure continuity of work.

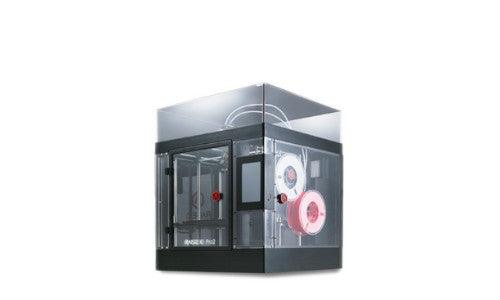

Raise3D Pro 2 printer

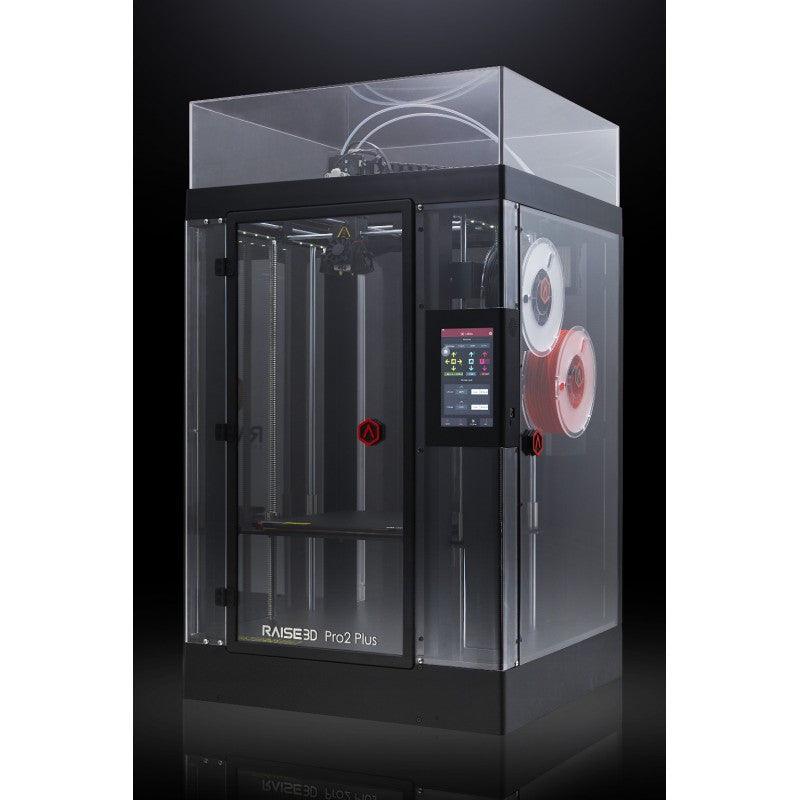

Raise3D Pro 2 Plus printer
Raise3D Pro 2 and Pro 2 Plus printers differ mainly in terms of the working field dimension and the external dimension. The Raise3D Pro 2 printer has a 305 x 305 x 300 mm working area, while the Raise3D Pro 2 Plus printer is larger and its working area is 305 x 305 x 605 mm. The external dimensions of the Pro 2 printer are 616 x 590 x 755 mm and 616 x 590 x 1107 mm for the Pro 2 Plus printer. Both printers work in FFF technology and have a double extruder with an electronic lifting system that allows printing of multi-material objects. Printers are mainly intended for small-lot production and for prototyping.
Data sheet
- Print Technology FFF
- Working area 305 x 305 x 605 mm
- Supported materials Nylon, PLA, ABS, PC, TPU, HIPS, PP, PVA, PET/PETG, Inne
- Nozzle size 0,2 / 0,4 / 0,6 / 0,8 mm
- Filament diameter 1.75 mm
- Nozzle temperature Max. 300°C
- Build Plate Heated aluminum build plate with magnetic holding
- Max Build Plate Temperature 110°C
- Connectivity WiFi, LAN, USB Port
- Software IdeaMaker
- File Types .stl, .obj
- Operating systems Mac OS X, Windows, Linux
- Power Universal 100 - 240 V, 50/60 Hz
- Printhead Dual-head with electronic lifting system
- Travel speed of the head 30 – 150 mm/s
- monitoring Live camera
- Ports SDCard x 1, USB 2.0 x 2, Ethernet x 1
- Onboard Flash 8 GB
- Touchscreen 7 inch Touch Screen
- XYZ Step Size 0,78125 / 0,78125 / 0,078125 mikron
- Build Plate Material Silicone
- Build Plate Leveling Pre-calibrated leveling
- Operating Sound 50 dB
- Power Supply Output 24 V, 600 W
- Network Ethernet, WiFi 802.11b/g/n 2,54/5 GHz
- Screen Resolution 1024 x 600
- Resume Print after Power Outage Second Generation
- Motion Controller ARM Cortex M7, 400 MHz FPU
- Logic Controller Freescale imx6, Quad Core 1 GHz ARM
- Memory 1 GB
- OS Embedded Linux
- Dimensions 616 x 590 x 1107 mm
- Warranty 12 months
