Description:

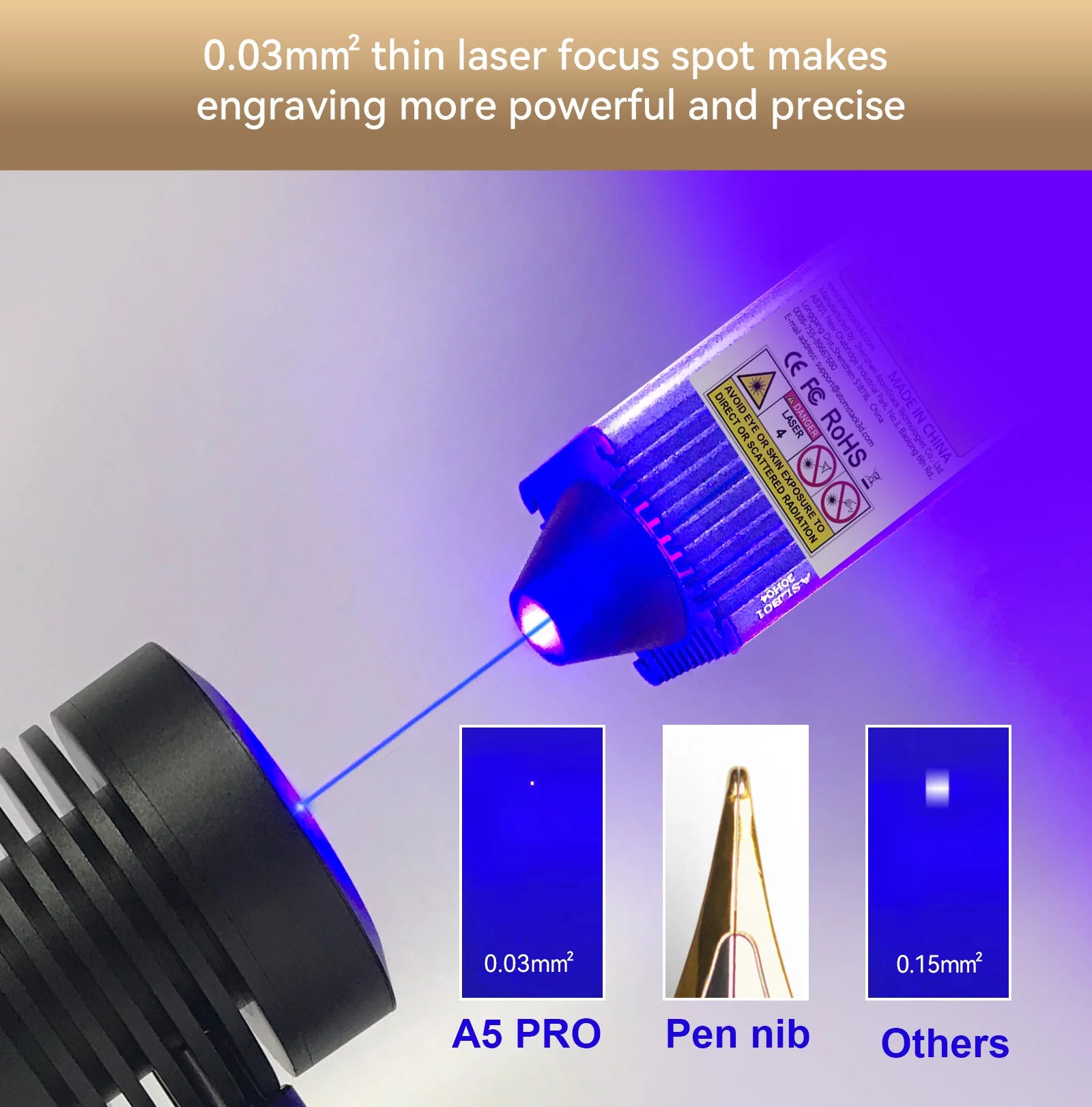

1. Upgrated Ultra-fine 0.23mm*0.23mm Laser Focal Area

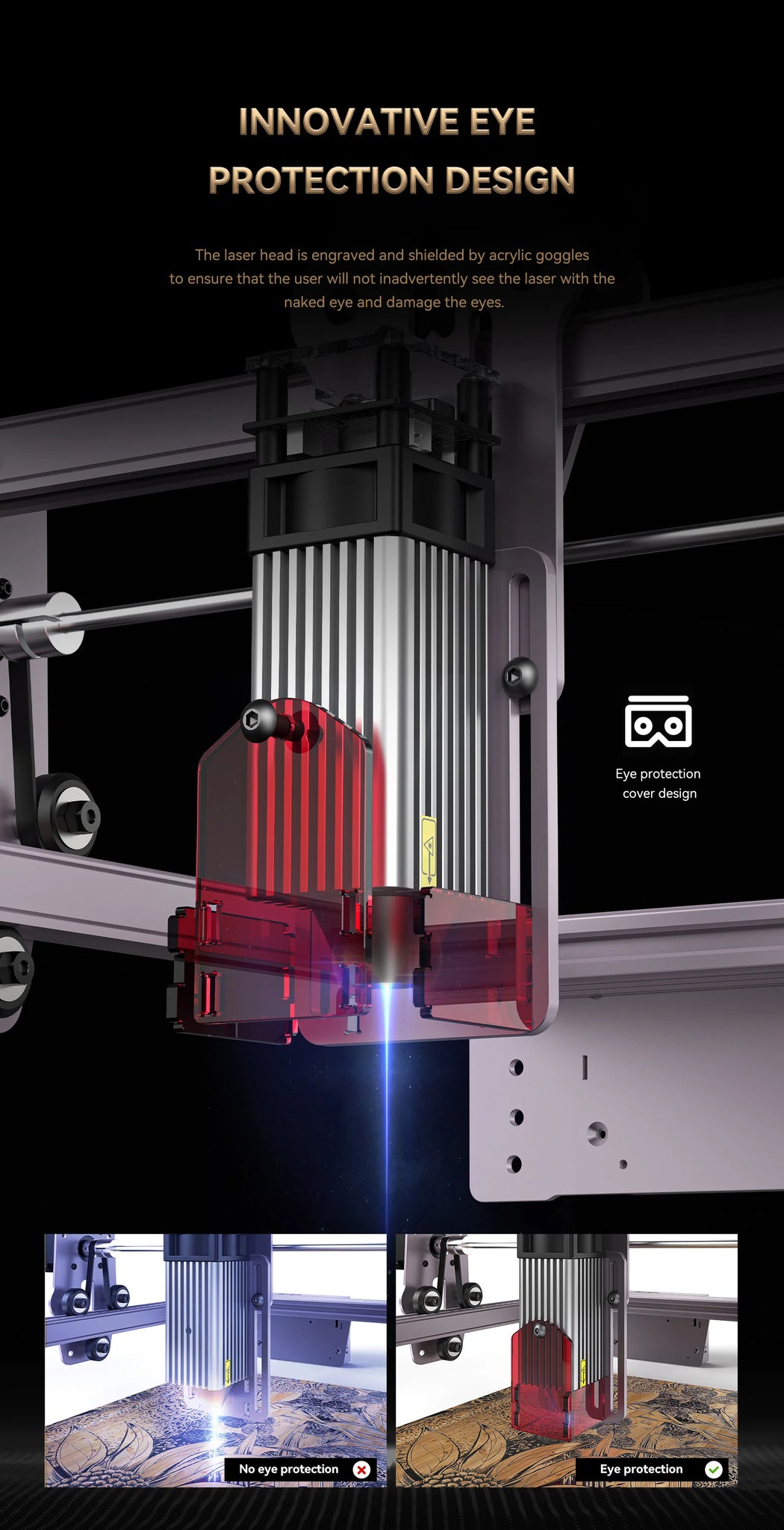

2. New eye protection design

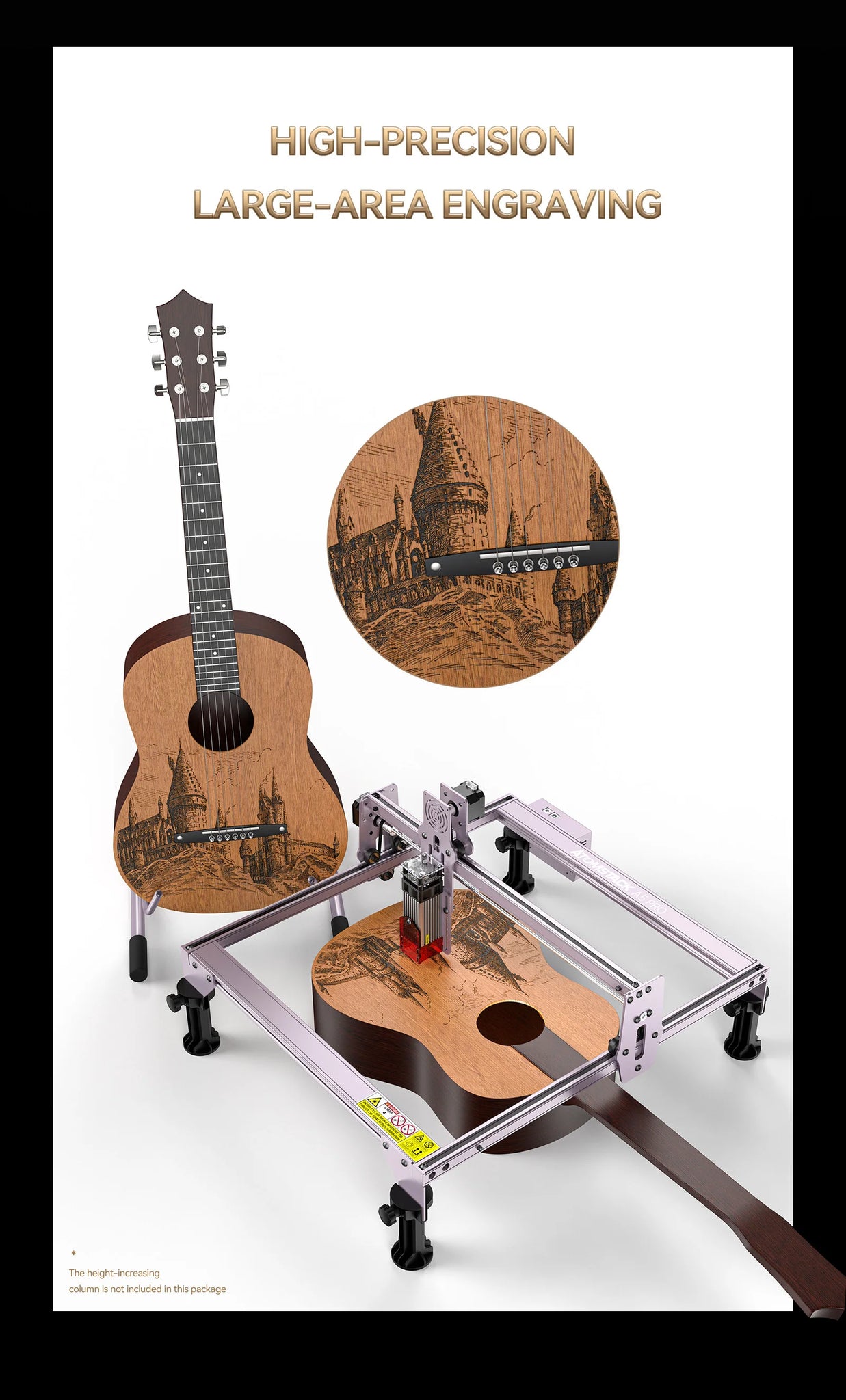

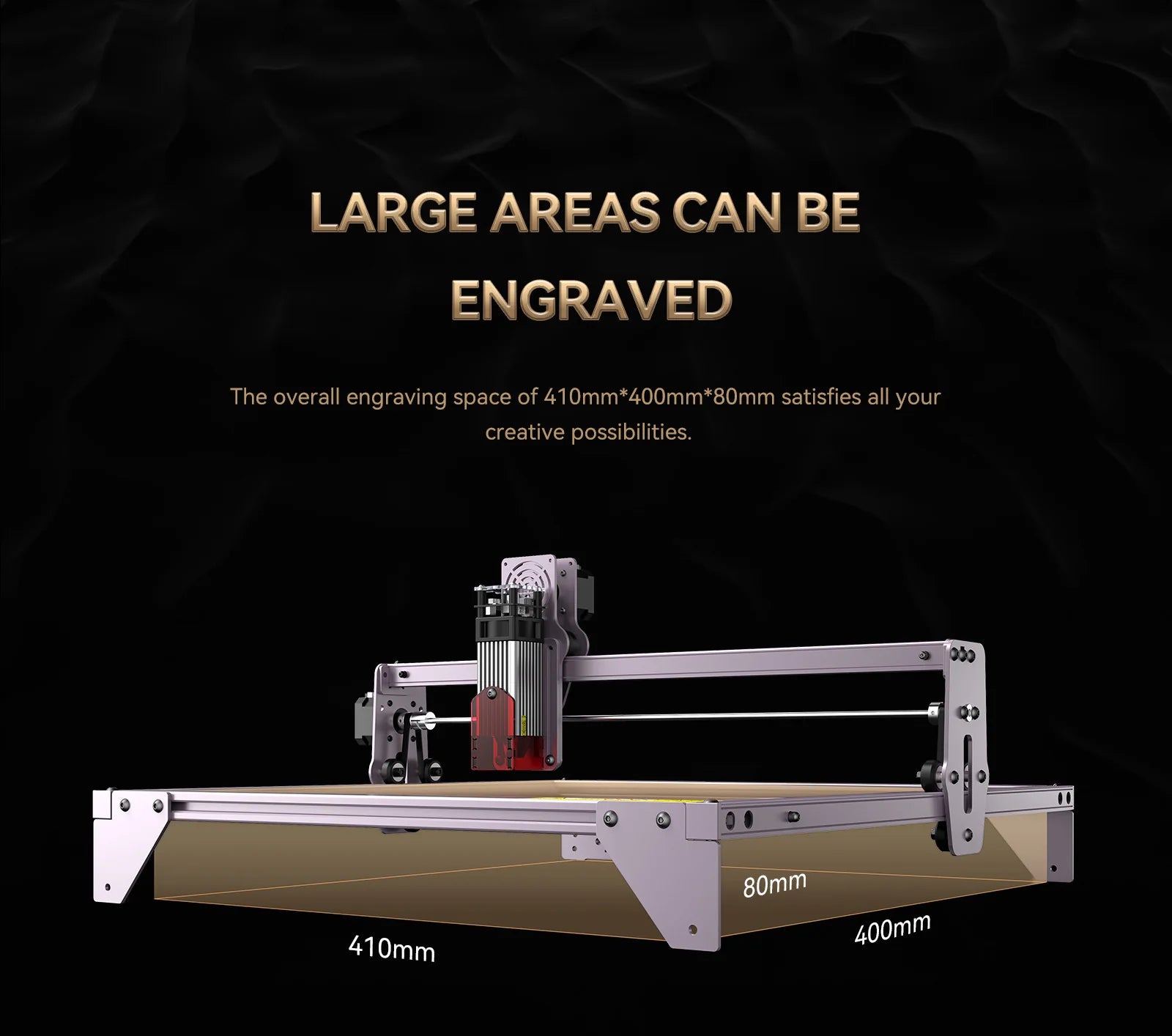

3. 410x400mm Large Carving Area

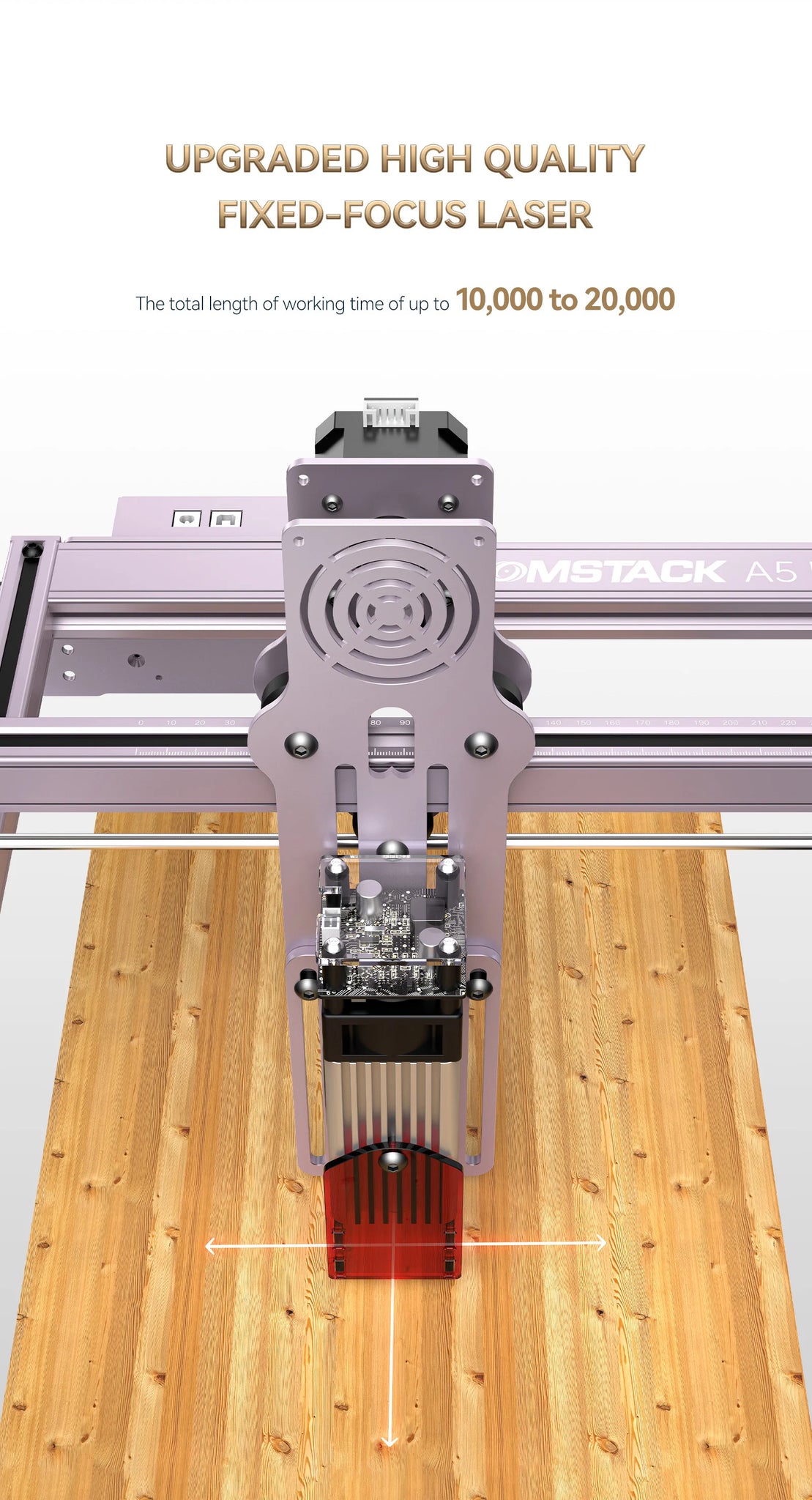

4. Upgraded High-quality Laser
5. Full-metal Structure

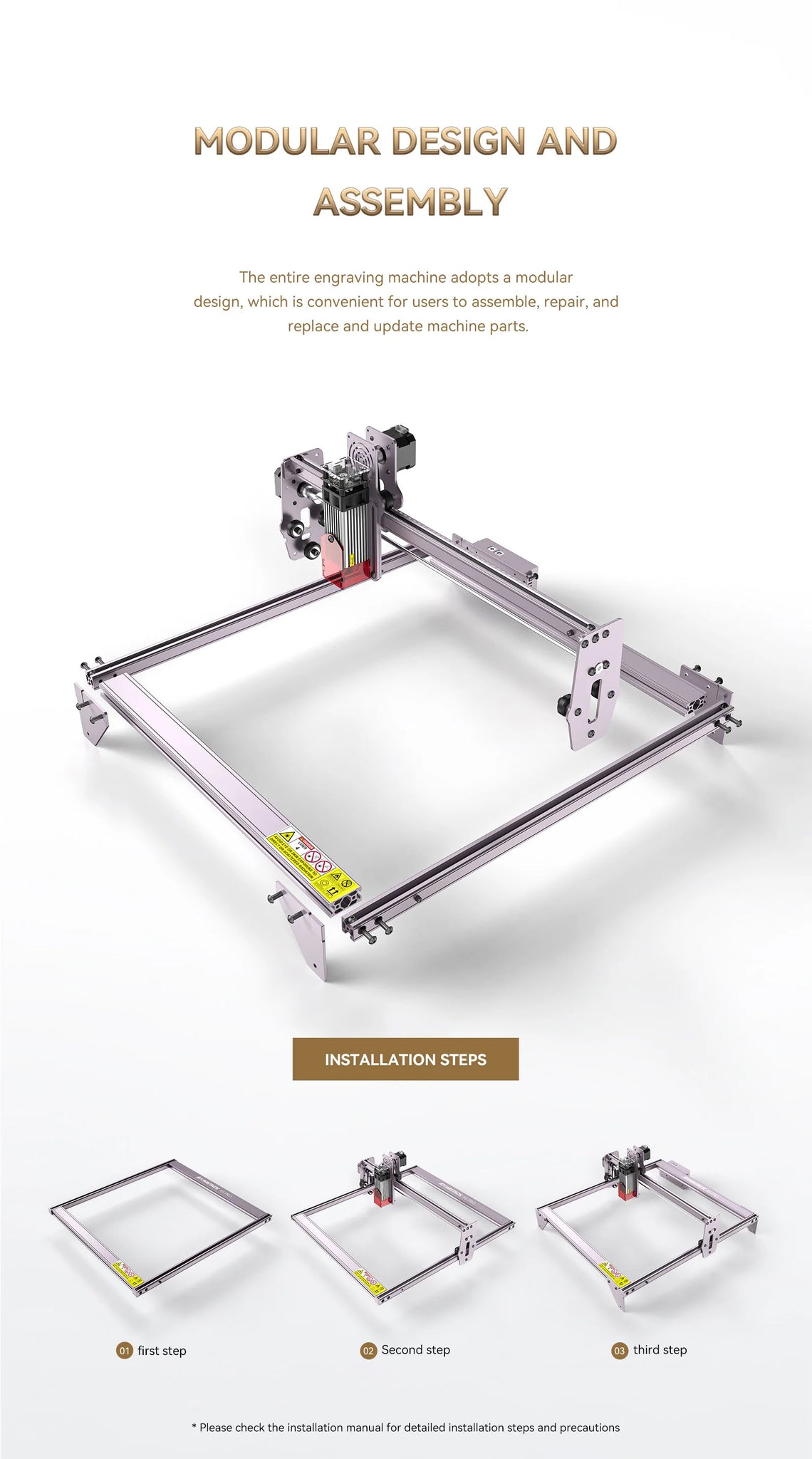

6. Quick Assembly Design

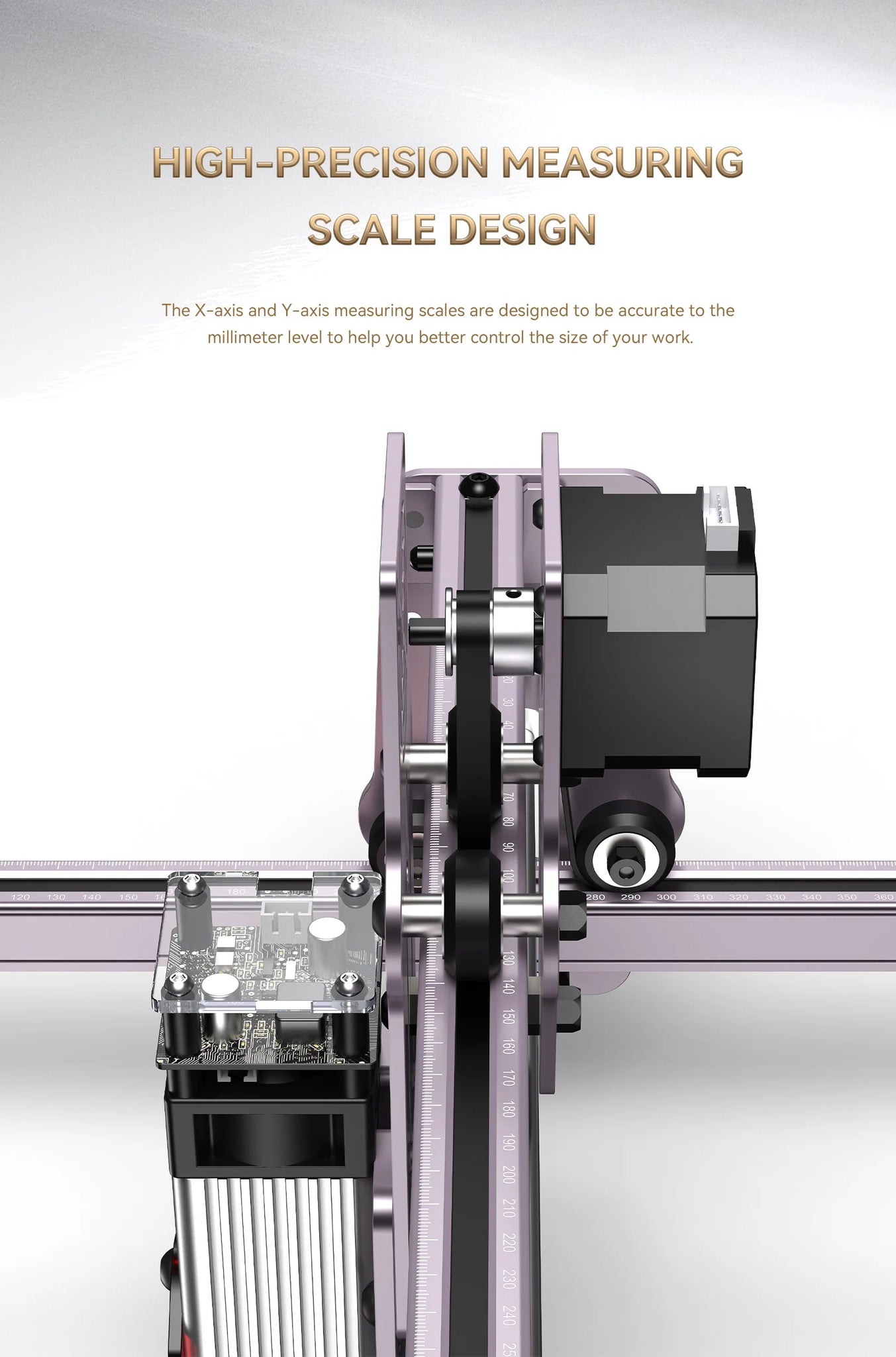

7. Precise Scale Lines

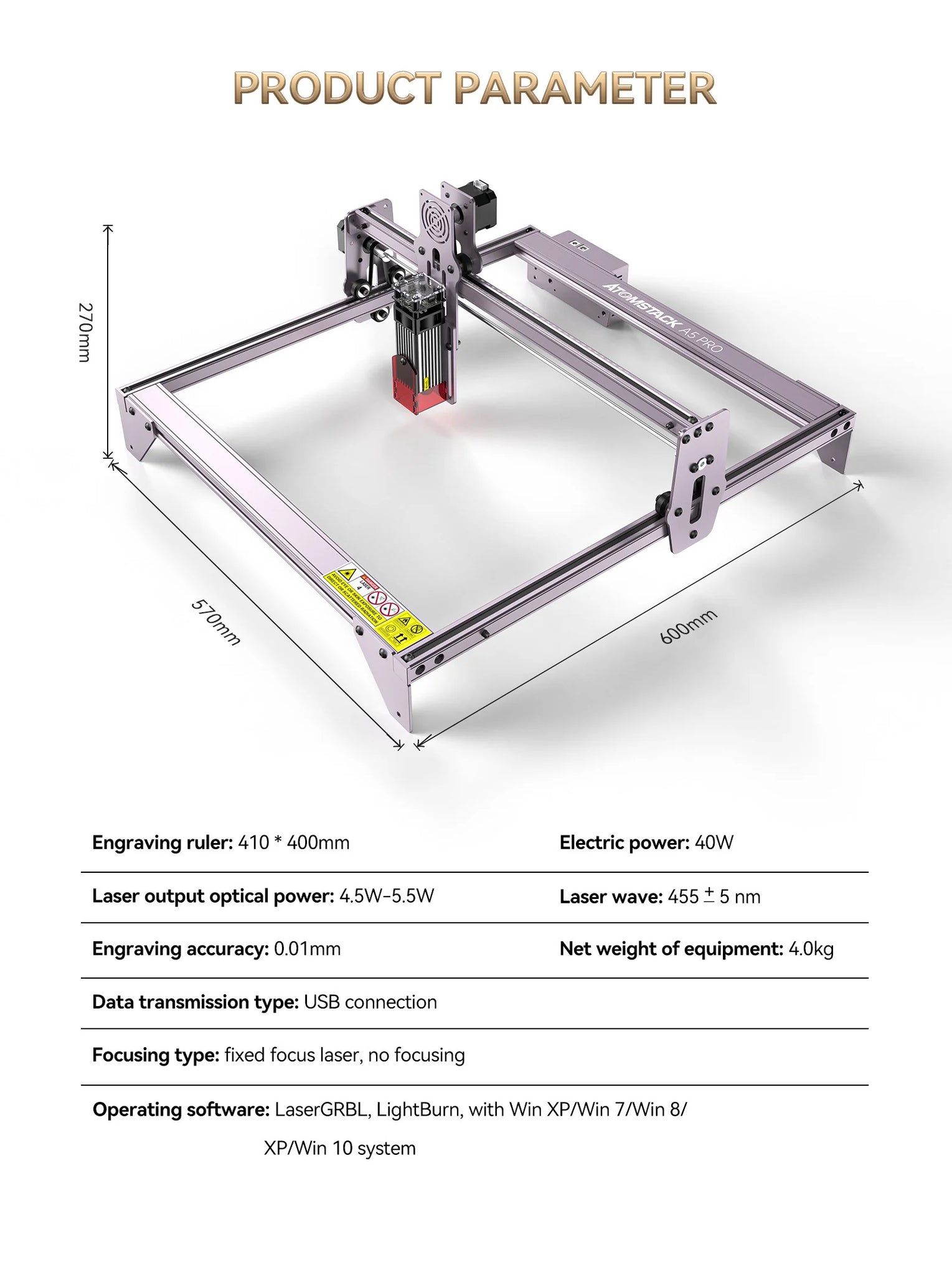

Specification:
| Item model number | ATOMSTACK A5 PRO |
| Print Size | Recommend Print Size 410*400mm |

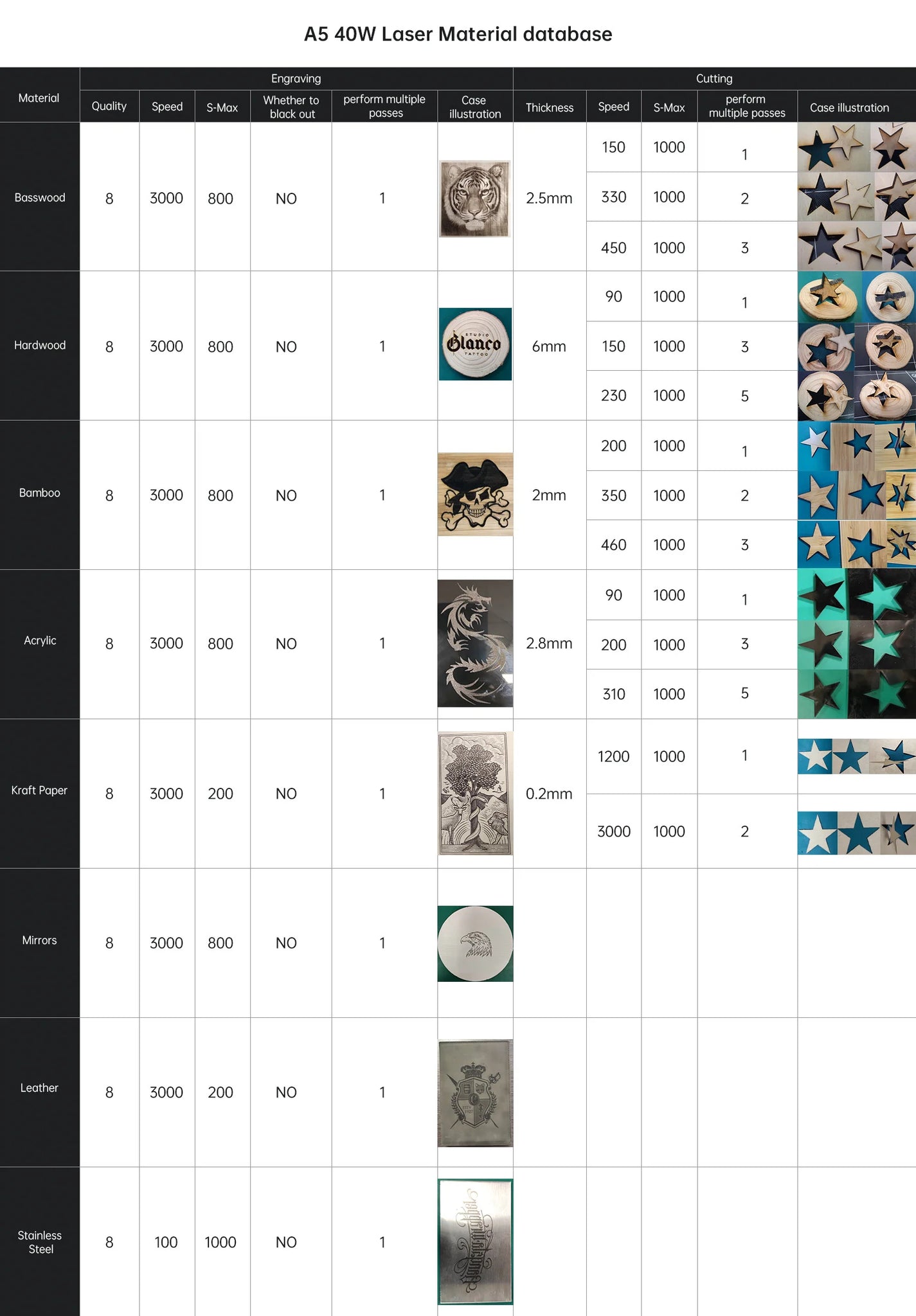

| Carving Objects | All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, ceramics (Should be painted black) |
| Cutting Objects | Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. |
| Laser power | 40W |
| Laser output power | 5W-5.5W |
| Wave Length | 445 ± 5nm |
| Engraving accuracy | 0.01mm |
| Focusing method | Fixed focus laser, no need to focus |
| Laser protective cover | Protect the user's eyes and prevent pets from grabbing the laser spot. |
| Operating software | LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. |
| Input Format | NC, BMP, JPG, PNG, DXF, etc. |
| Data transmission method | USB connection. |
| Input Voltage | AC100-240V, 50/60Hz |
| Output Voltage | DC12V, 5A |
| Equipment net weight | 4.0kg |
| Package weight | 5.2kg |
| Equipment size | 570*600*270mm |
| Packing size | 618*342*129mm |
| Certification |
CE FCC RoHS FDA Weee |

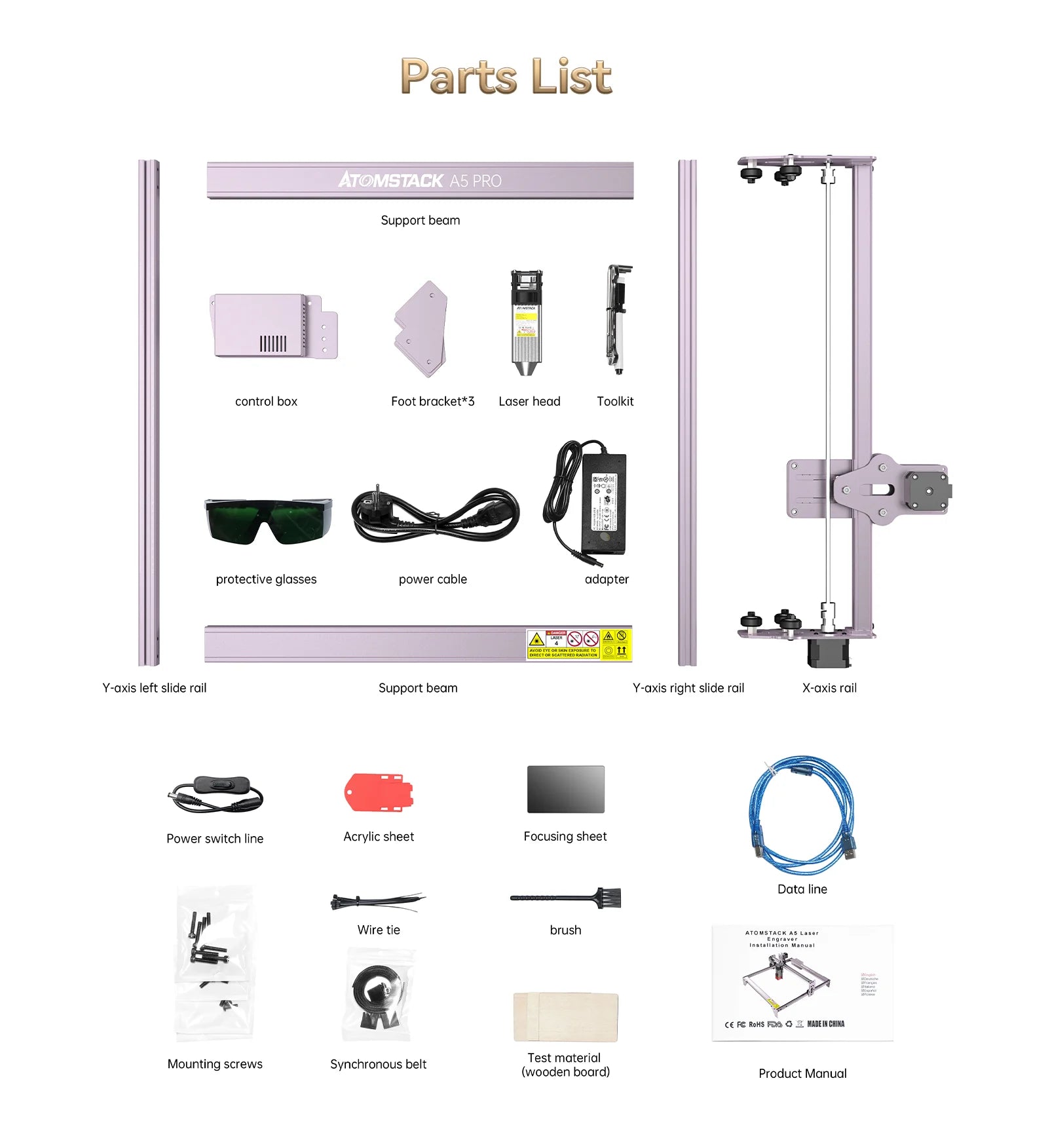

Package Included:
1 x X-axis assembly
2 x Section 57CM
2 x Section 48CM
1 x Control box
3 x Support legs
1 x Goggles
1 x Laser
1 x 24V2A power adapter
1 x Power cord
1 x USB cable
Step 1~5 Installation package
1 x M5 wrench
10 x Rolled belt
3 x Small wood
1 x focal length film
1 x M3 wrench
1 x Marker
1 x Brush
3 x Small acrylic
