Beschreibung
●Running Klipper or OctoPrint.
●Board to board connection, compatible with CB1/CM4.
●Perfectly fit Ender 3.
●New technology--work with EZ driver.
●Rich interface - suitable for 3d printer DIY.
Product Description:

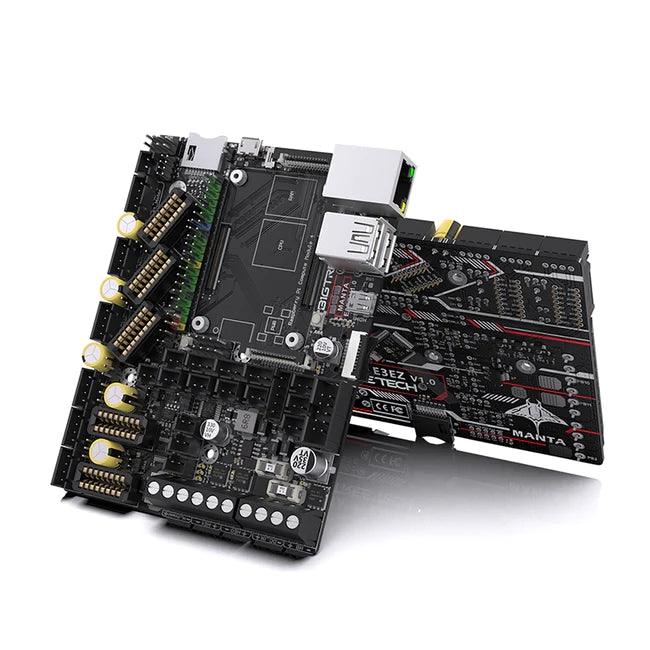

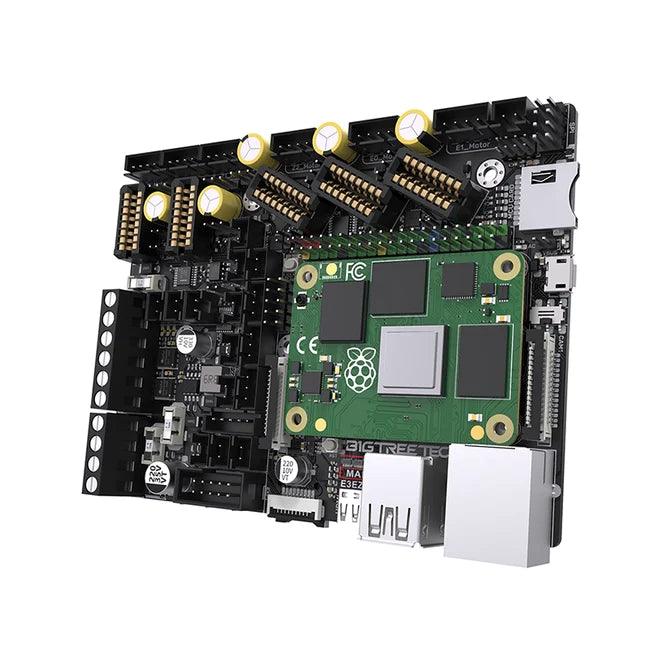

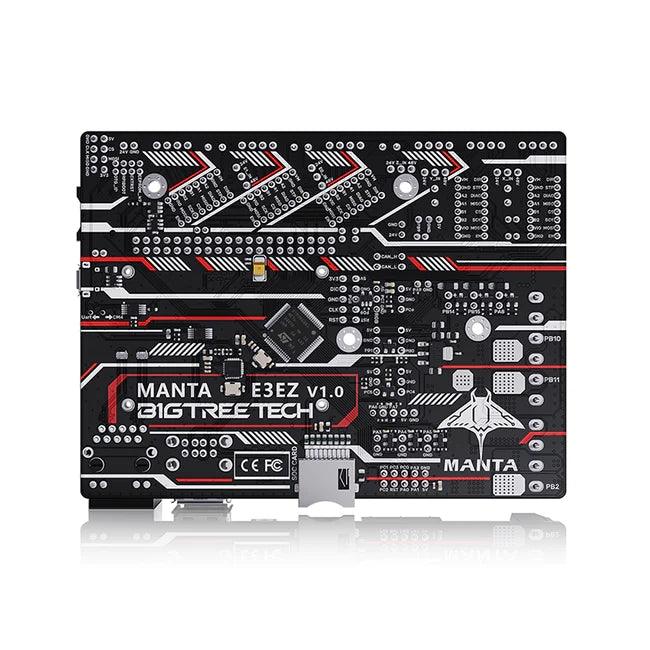

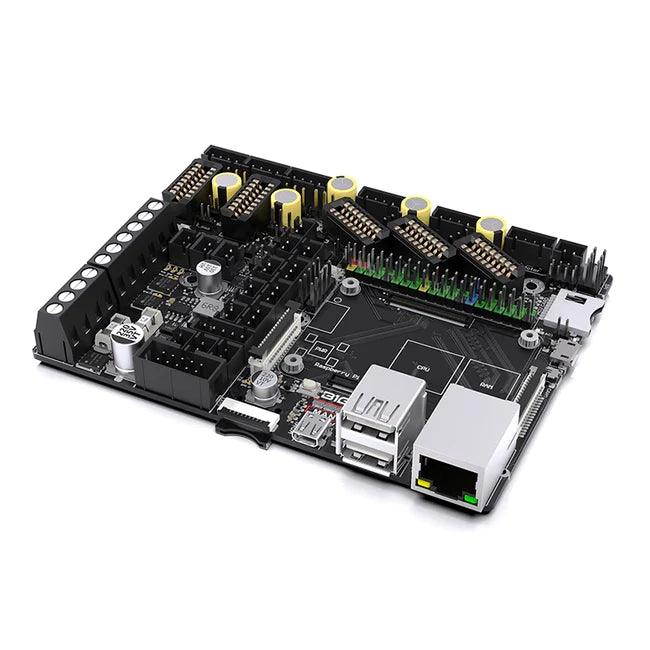

The BIGTREETECH MANTA E3EZ V1.0 is a motherboard developed by the 3D printing team of Shenzhen Bigtree Technology Co. to help you to take your Ender 3 to the next level whether that means running Klipper or even Marlin with all of the latest features. This is our first motherboard that incorporates “Manta” technology (B2B connectors for the CB1 or CM4 modules) and “EZ” technology (the ability to use the latest EZ drivers). Simply plug in the CB1 core board and EZ drivers on the motherboard to upgrade your Ender 3 printer to run Klipper. Due to there being no need for an external raspberry pi the Manta series saves you messy cabling and results in a highly compact implementation.
Display Compatibility:
MANTA series motherboards support SPI and HDMI screens.
Files:
The Manta E3EZ is directly compatible with the Ender-3. Since we crammed so much into this board, we were unable to keep the size 100% compatible with other Ender machines and so minor, printable adapters are required. To check if your machine requires an adapter, see this link:
Dimensions & Specs
MCU:ARM Cortex-M0+ STM32G0B1RE 64MHz
Motherboard Power Supply Voltage：DC12V-DC24V
Motor Supply Voltage：DC12V-DC56V
Logic Voltage：DC 3.3V
Heater Connection：Heated Bed (HB), Heater Cartridge (HE0, HE1)
HB Port Max Current：10A Continuous, 11A Instantaneous
Heater Cartridge Max Current：5A Continuous, 6A Instantaneous
Fan Port：3 x PWM, 2 x Always On
Fan Port Max Current：1A Continuous, 1.5A Instantaneous
Overall Max Current(Heater Cartridge+Driver+All Fans)：<10A
Expansion Port：BLTouch, PS-ON, PWR-DET, Fil-DET, RGB, CAN FD, SPI
Motor Driver：Support EZ5160, EZ2209, EZ2208, EZ2225, EZ2226, EZ2130, EZ6609…
Driver Mode：SPI, UART
Motor Socket：X, Y, Z (Dual Z Axes), E0, E1 5 Channels in Total
Thermistor：3 x 100K NTC
Display：SPI Touchscreen, LCD Display
PC Connection：Micro USB
Interface：USB 2.0x2, LAN, DSI, CSI, SPI, 40Pin-GPIO, HDMI0, SOCCard, MCU-Card
Supported Kinematics：Cartesian, Delta, Kossel, Ultimaker, CoreXY
