ELE comes from the word electronic, which means open-source electronic. GOO comes from the word googol, meaning the 100th power of 10. The written form is 1 followed by 100 zeros, referring to the huge amount of structural models brought by 3D printers.
Elegoo implies the combination of open-source electronics and structures that creates everything.
About brand vision/mission: Create the future, interpreted as "With the help of programming and 3D printing technology, we can create almost anything—Elegoo provides geeks with the key to a new world."
A Real Thorough Curing
2 adjustable L-shaped light bars and increased 4 LED lights under the 360° rotating turntable paired with Fresnel lens to emit UV light with a uniform wavelength of 405nm, ensuring that the model is evenly exposed from all angles.
Additionally, there is a handheld UV lamp to cure the interior or nooks and crannies of 3D printed parts for smoother surface and incredible print quality, also ideal for curing assembled models.
Powerful Rinse
Convenient Operation Settings
UV Protection Cover
Separate Curing And Washing
Operation Instructions:
- After the model is printed, please clean and blow-dry the model before putting it into the machine.
- If the model become yellow after curing, please reduce the curing time. Over curing will lead to a yellowish model.
- Recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%.
- Please do not use it for more than 40 minutes at a time to avoid overheating
- Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly.
- Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.

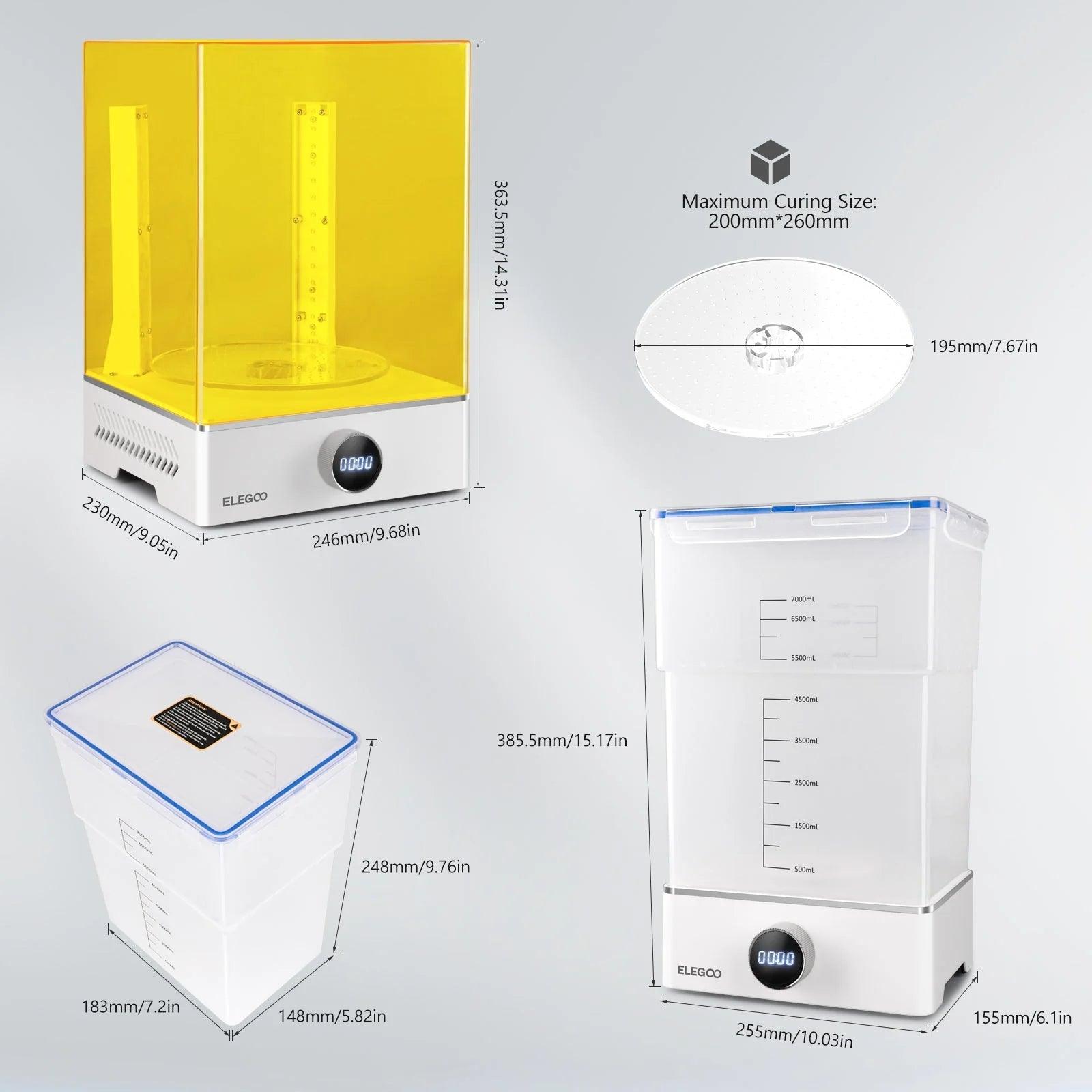

Technical Specifications
- Control Method: Knob + Button
- Rated Power: 12W
- Input Voltage: 110V/240V 50/60Hz
- Time Setting: 0-30mins
- Machine Size: 255mm*155mm*385.5mm
- Maximum Wash Volume:
- (with platform)180mm*121mm*153mm
- (without platform)201mm*124mm*255mm
- Machine Net Weight: 2.27kg
- Control Method: Knob + Button
- Rated Power: 36W
- Input Voltage: 110V/240V 50/60Hz
- Time Setting: 0-30mins
- Machine Size: 246mm*230mm*363.5mm
- Maximum Curing Size: 200mm*260mm
- Machine Net Weight: 2.4kg
-

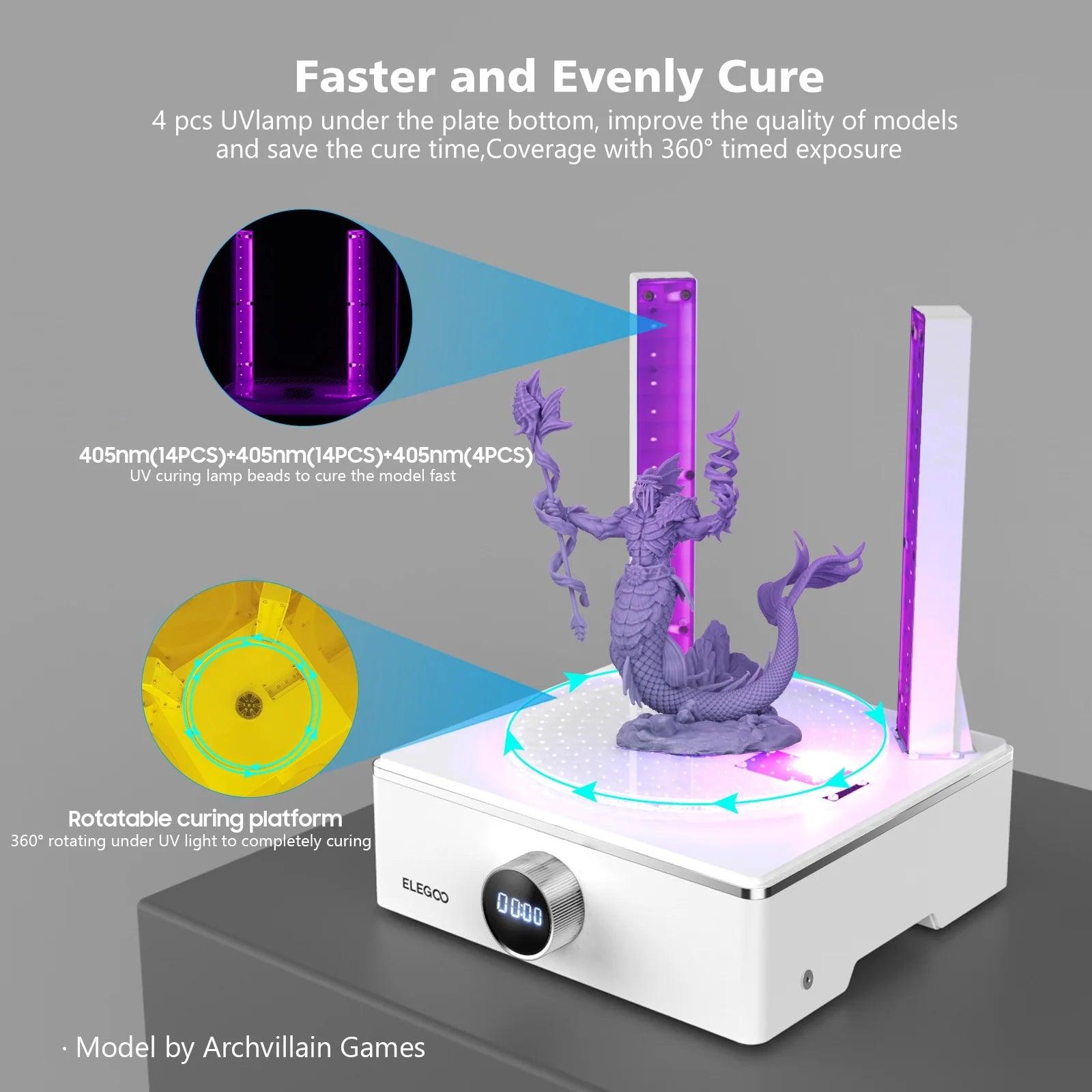

360° all-round exposure] The post-curing station adopts 2 L-shape light bars (each built-in 14 UV LED lights) and adds 4 UV LED beads beneath the turntable. Work with 360°auto-rotating turntable and a handheld UV lamp that cures the nooks and crannies and interior of 3D prints, so that the entire model is cured thoroughly without dead ends.

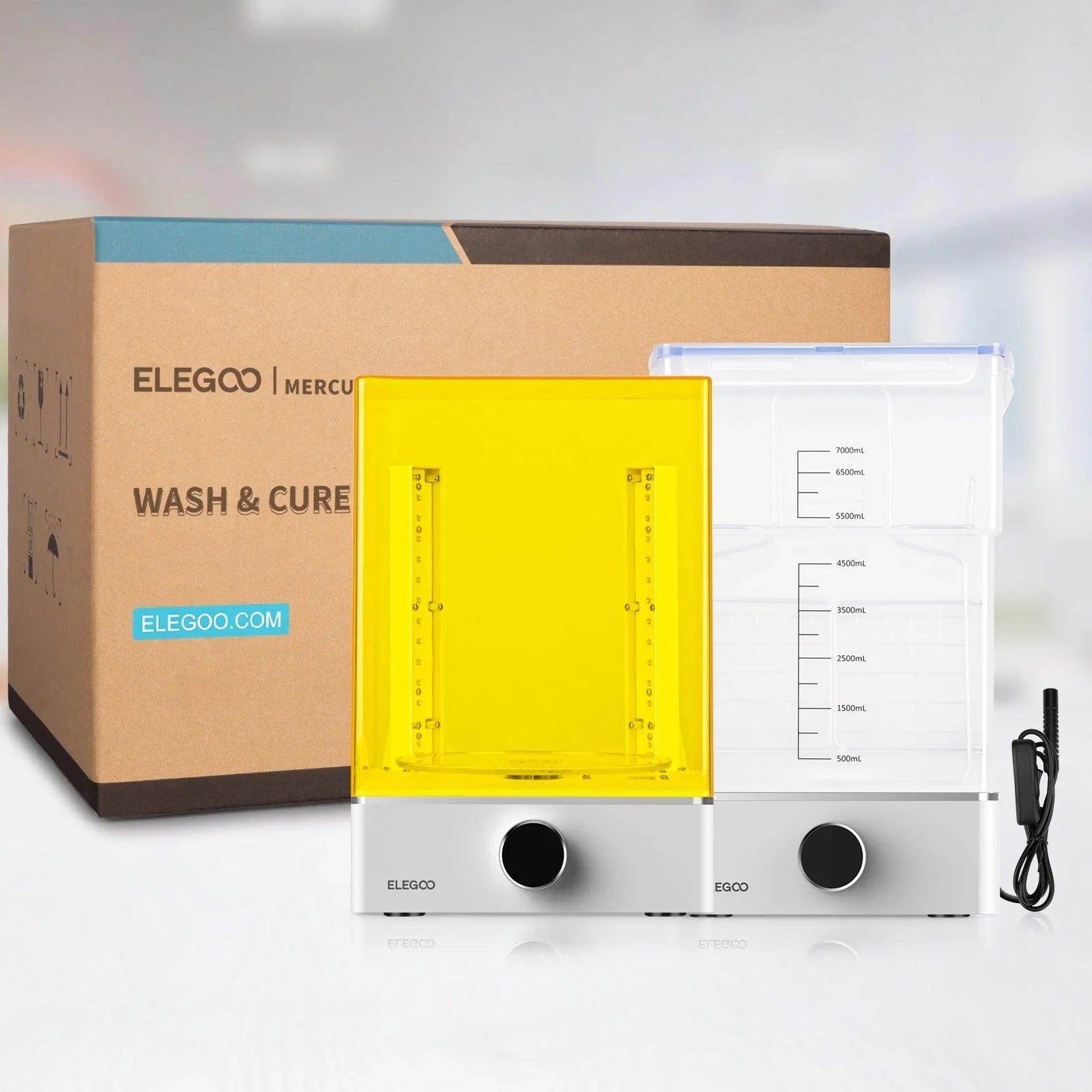

- [Dual function of washing and curing] ELEGOO Mercury XS contains 1 washing station and 1 post-curing station, with the dual function of cleaning and curing to remove uncured resin of 3D printed models and optimized your print quality, making your post-processing simple and efficient.
- [Large washing volume] With an 7000ml large capacity sealed water tank, you can directly wash large models printed by ELEGOO Saturn and Mars 3, or clean parts in batches, which offers substantial time savings and improves your productivity.

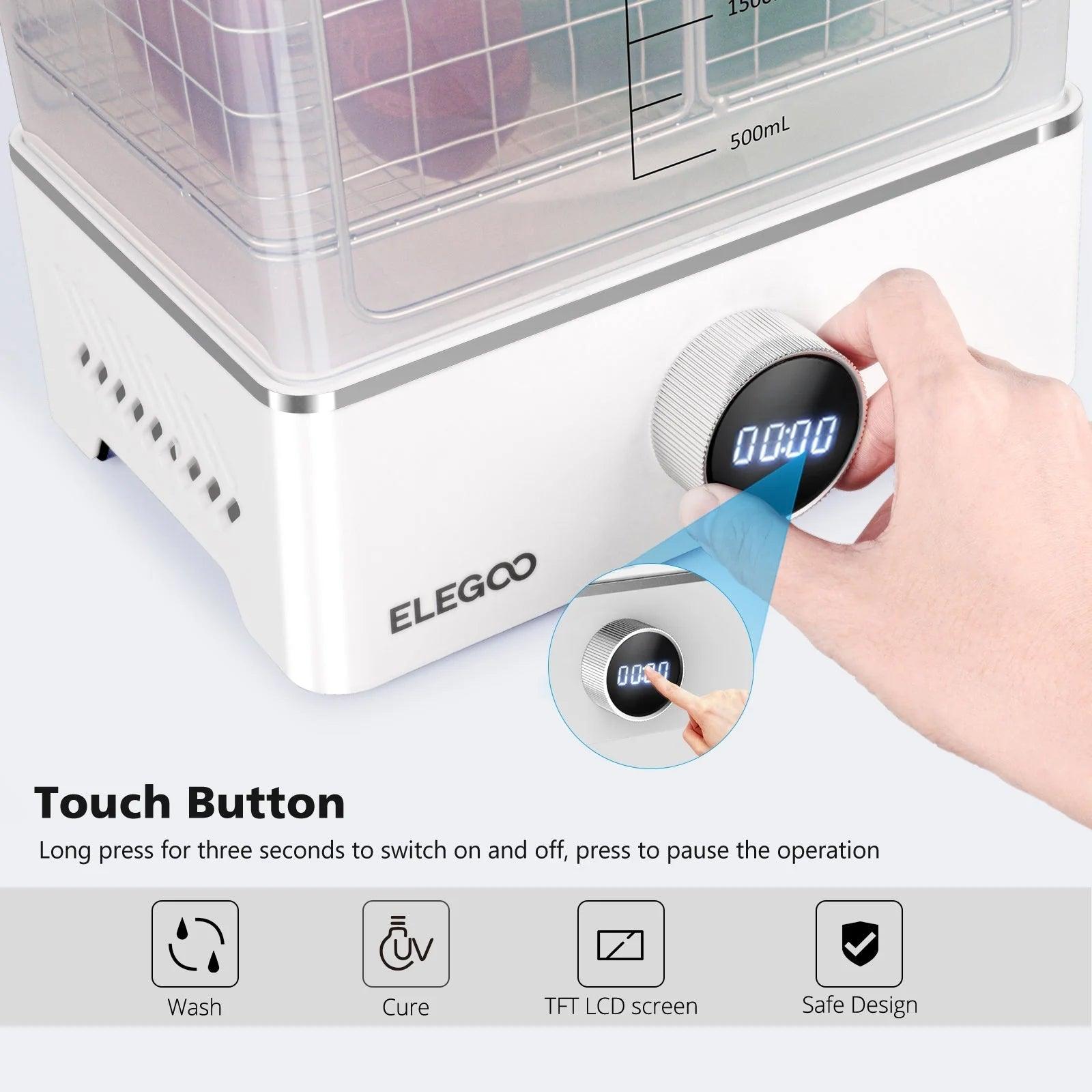

- [Easy and intuitive operation] With a single knob, just press and hold to turn on the machine, then rotate the knob to set an appropriate time for washing or curing, and your models will be ready in a short time. The UV cover can block 99.9% of ultraviolet rays and protect your eyesight during post-curing.
- [Wide Compatibility] Directly compatible with ELEGOO Saturn or Mars 3 3D printers and the most similar build volume LCD/DLP/SLA 3D resin printers on the market, making your 3D resin print post-processing simple, professional, and efficient.
