[Sonic Mini 8K] How to run the LCD Test - Antinsky3d

Before printing or when encountering an issue, you may need to check the status of your Sonic Mini 8K's LCD screen. This is to ensure that both the UV lights and the 7.1” Mono-LCD screen are functioning properly. We will guide you through the steps of performing an LCD test and how you can read the test:


*Caution! DO NOT look directly into the light. Improper exposure to UV light may cause painful eye and/or skin injuries.

Step 1: LCD TEST



The LCD test is to check if the lighting and the masking function are working correctly.

  1. On the touch panel, click TOOLS, then click LCD TEST.
  2. A white rectangular frame will appear on touch panel.

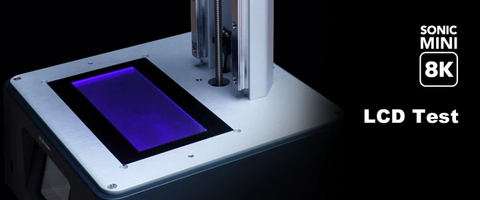

  3. A blue rectangular frame will appear on the LCD.
  4. Run this test to see if the image displayed on LCD matches the image on touch panel.



Step 2: VAT CLEANING

You could also run an additional Vat Cleaning test, which lights up the whole LCD. This ensures that the UV lights are distributed evenly and that there are no dead pixels on the LCD.

  1. Click TOOLS, then click VAT CLEANING.
  2. Vat Cleaning exposure time is preset to 15 seconds.
  3. A white rectangular will appear on touch panel.
  4. The entire LCD lights up in blue on the LCD.
  5. Run this test to check if the UV lights are distributed evenly.
