ESUN ePLA-GF 3D filament 1.75mm with highly rigid and good printability for 3d printer filament


color: white
Delivery time: 3 weeks
Price:
Sale price$45.99

Description

ESUN ePLA-GF

Founded in 2002, Shenzhen eSUN Industrial Co., Ltd. is a national high-tech enterprise, a national strategic emerging industry new material project undertaker, and one of China's top ten biodegradable enterprises.

The printing filament developed on the basis of PLA is added with 16% glass fiber, which greatly enhances the rigidity and impact resistance of ordinary PLA. The bending modulus is as high as 4400MPa, which is highly rigid and not easy to distort;

Description

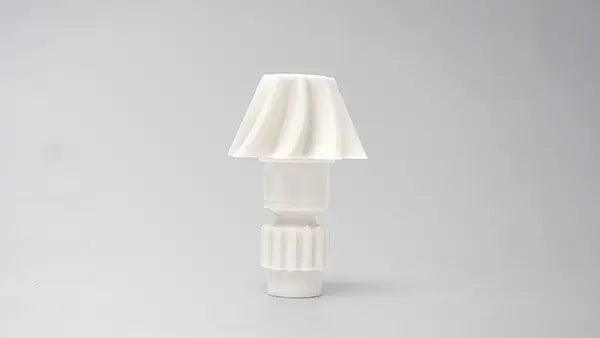

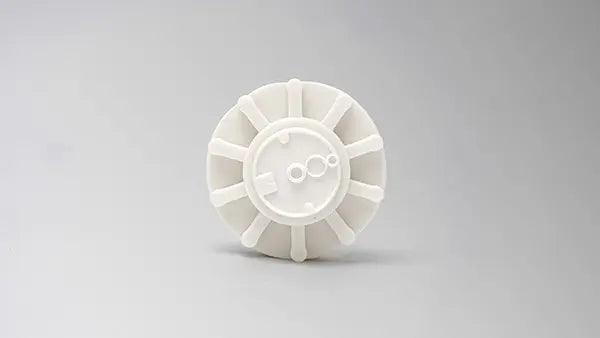

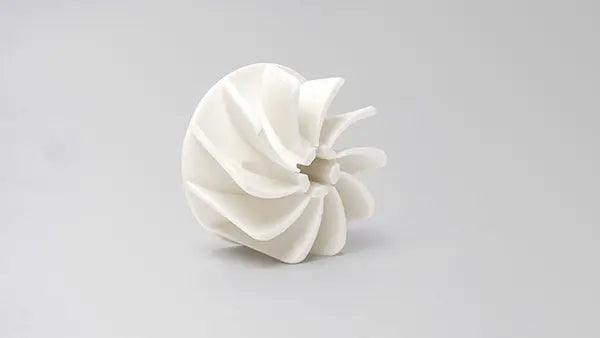

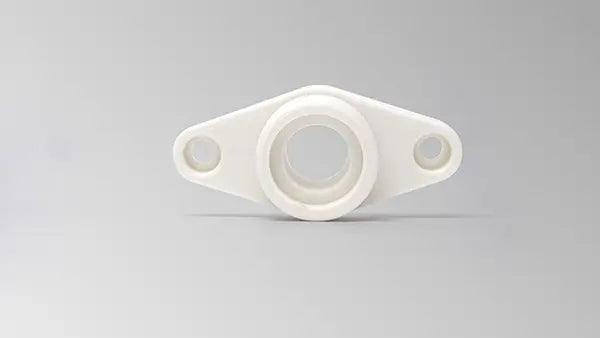

High impact resistance and good printability of PLA; Suitable for mechanical parts prototypes with requirements for rigidity and impact resistance; Wear-resistant performance makes it suitable for printing gears and can be used as temporary functional parts.

Sellingpoint

High rigidity

High impact resistance


High wear resistance

Excellent printability



1. ePLA-GF line has strong rigidity and is not easy to bend. In the feeding pipeline, excessive bending of filament should be avoided as far as possible

2. ePLA-GF is very easy to grind the nozzle and extruder gear. It is recommended to use hardened steel nozzle or ruby nozzle. If conditions permit, hardened steel extruder gear can be selected. If the printing time is long and the plug occurs, the throat and nozzle need to be replaced

3. The blowing fan can be properly turned off to improve the model strength

Filament Properties Table
3D PRINTING FILAMENT ePLA-GF
Density(g/cm3) 1.31
Heat Distortion Temp(℃,0.45MPa) 56
5/10
Melt Flow Index(g/10min) 6.36(190℃/2.16kg)
Tensile Strength(MPa) 59.27
7/10
Elongation at Break(%) 7.99
1/10
Flexural Strength(MPa) 85.01
8/10
Flexural Modulus(MPa) 4414.89
8/10
IZOD Impact Strength(kJ/㎡) 10.16
2/10
Durability 4/10
Printability 9/10
Recommended printing parameters
Extruder Temperature(℃) 190 – 230℃
Recommended temperature:215℃
Bed temperature(℃)  45 – 60°C
Fan Speed  100%
Printing Speed  40 – 100mm/s
Heated Bed  Optional
Recommended Build Surfaces

Masking paper, PVP solid glue, PEI
